V-Lisn đo điện áp xáo trộn không đối xứng giữa hai dòng L1 và mặt đất hoặc L2 và mặt đất tương ứng. V-Lisn còn được gọi là V-ANM (Mạng lưới chính nhân tạo). V-Lisn là Lisn được sử dụng phổ biến nhất.
Line Impedance Stabilisation Network (LISN)
Các model thiết bị :
NSLK 8117
| Topology: | V-LISN | |
| Frequency Range: | 9 kHz – 30 MHz | |
| Pre-filter choke: | 250 µH | |
| Impedance simulation: | 50 Ω || (50 µH + 5 Ω) | |
| Max. Current: | 2 x 10 A | |
| Max. Voltage: | 250 VAC 50/60 Hz 350 VDC |
|
| Supply cable: | IEC Appliance Inlet C14 | |
| Connector for EuT: | CEE 7/4 Type F (Schuko) socket | |
| Connector for „artificial hand“: | 4 mm laboratory socket with screw terminal 6 mm, not removable | |
| Connector to EMI receiver: | BNC socket 50 Ω | |
| Dimensions housing (WxHxD): | 105 mm x 108 mm x 263 mm | |
| Standard: | CISPR 16-1-2 |
NSLK 8127
| Topology: | V-LISN | |
| Frequency Range: | 9 kHz – 30 MHz | |
| Pre-filter choke: | 250 µH | |
| Impedance simulation: | 50 Ω || (50 µH + 5 Ω) | |
| Max. Current: | 2 x 16 A | |
| Max. Voltage: | 250 VAC 50/60 Hz 400 VDC |
|
| Supply cable: | hard-wired three-wire connection cable with CEE 7/4 Type F (Schuko) plug | |
| Connector for EuT: | CEE 7/4 Type F (Schuko) socket | |
| Connector for „artificial hand“: | 4 mm laboratory socket with screw terminal 6 mm, not removable | |
| Connector to EMI receiver: | BNC socket 50 Ω | |
| Lenght: | 470 mm | |
| Width: | 445 mm | |
| Height: | 145 mm | |
| Weight: | 9.5 kg | |
| Standard: | CISPR 16-1-2 |
NSLK 8126
| Topology: | V-LISN | |
| Frequency Range: | 9 kHz – 30 MHz | |
| Pre-filter choke: | 250 µH | |
| Impedance simulation: | 50 Ω || (50 µH + 5 Ω) | |
| Max. Current: | 2 x 16 A CEE 7/4 Type F (Schuko socket) and 4 x 16 A IEC 60309 3L+N+PE 16 A (CEKON-socket) |
|
| Max. Voltage: | 250 VAC 50/60 Hz 400 VDC |
|
| Supply cable: | Cable with CEKON plug | |
| Connector for EuT: | CEE 7/4 Type F (Schuko socket)/ IEC 60309 3L+N+PE 16 A (CEKON-socket) |
|
| Connector for „artificial hand“: | 4 mm laboratory socket with screw terminal 6 mm, not removable | |
| Connector to EMI receiver: | BNC socket 50 Ω | |
| Lenght: | 405 mm | |
| Width: | 448 mm | |
| Height: | 180 mm | |
| Weight: | 12.5 kg | |
| Standard: | CISPR 16-1-2 |
NSLK 8128
| Topology: | V-LISN | |
| Frequency Range: | 9 kHz – 30 MHz | |
| Pre-filter choke: | 250 µH | |
| Impedance simulation: | 50 Ω || (50 µH + 5 Ω) | |
| Max. Current IEC 60309: |
4 x 32 A | |
| Max. Current CEE 7/4 socket: | 16 A | |
| max. Voltage: | 250 VAC 50/60 Hz 400 VDC |
|
| Supply cable: | hard-wired five-wire connection cable with CEE plug (IEC 60309) | |
| Connector for EuT: | CEE 7/4 Type F (Schuko) socket and IEC 60309 3L+N+PE 32 A CEE socket |
|
| Connector for “artificial hand”: | 4 mm laboratory socket with screw terminal 6 mm, not removable |
|
| Connector to EMI-receiver: | BNC socked, 50 Ω | |
| Length: | 470 mm | |
| Width: | 450 mm | |
| Height: | 370 mm | |
| Weight: | 34.2 kg (38.5 kg RC) | |
| Standard: | CISPR 16-1-2 |
NSLK 8163
| Topology: | V-LISN | |
| Frequency Range: | 9 kHz – 30 MHz | |
| Pre-filter choke: | 250 µH | |
| Impedance simulation: | 50 Ω || (50 µH + 5 Ω) | |
| Max. continuous current CEE: | 4 x 63 A | |
| max. Voltage: | 400 / 700 VAC 630 VDC |
|
| Supply cable: | CEE plug (IEC 60309) | |
| Connector for EuT: | CEE socket (IEC 60309 3L+N+PE 63 A) | |
| Connector for “artificial hand”: | 4 mm laboratory socket with screw terminal 6 mm, not removable |
|
| Connector to EMI-receiver: | BNC socked, 50 Ω | |
| Length: | 650 mm | |
| Width: | 450 mm | |
| Height: | 480 mm | |
| Weight: | 40.8 kg | |
| Standard: | CISPR 16-1-2 |
NNLK 8121
| Topology: | V-LISN | |
| Frequency Range: | 9 kHz – 30 MHz | |
| Impedance simulation: | (50 µH+5 Ω) || 50 Ω | |
| Max. Voltage: | 250 VAC 50/60 Hz 400 VDC |
|
| Max. Current: | 4 x 50 (100*) A | |
| Mains terminals: | 4 wing terminals | |
| Terminals for E.u.T.: | 4 wing terminals | |
| Length: | 480 mm | |
| Width: | 450 mm | |
| Height: | 370 mm | |
| Weight: | 33 kg | |
| Standard: | CISPR 16-1-2 |

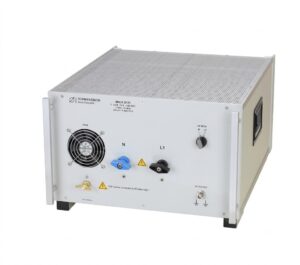

NNLK 8122
| Topology: | V-LISN | |
| Frequency Range: | 9 kHz – 30 MHz | |
| Pre-filter choke: | 250 µH | |
| Impedance simulation: | 50 Ω || (50 µH + 5 Ω) | |
| Max. Voltage: | 1000 VCD 750 VAC 50/60 Hz |
|
| Max. Current: | 50 A | |
| Length: | 550 mm | |
| Width: | 450 mm | |
| Height | 290 mm | |
| Weight: | 22.2 kg | |
| Standard: | CISPR 16-1-2 |
NNLK 8129
| Topology: | V-LISN | |
| Frequency Range: | (9 kHz) 150 kHz – 30 MHz | |
| Impedance simulation: | 50 µH || 50 Ω | |
| Max. Voltage: | 250 VAC 50/60 Hz 400 VDC |
|
| Max. Current: | 4 x 200 (300) A | |
| Mains terminals: | 4 wing terminals | |
| Terminals for E.u.T.: | 4 wing terminals | |
| Length: | 604 mm | |
| Width: | 446 mm | |
| Height: | 355 mm | |
| Weight: | 30.5 kg | |
| Standard: | CISPR 16-1-2 |
NNLK 8129-2 HV
| Topology: | V-LISN | |
| Frequency Range: | (9 kHz) 150 kHz – 30 MHz | |
| Impedance simulation: | 50 µH || 50 Ω | |
| Max. Voltage: | 1000 VAC 50/60 Hz 1000 VDC |
|
| Max. Current: | 2 x 200 (300) A | |
| Mains terminals: | Wing terminals 12 mm, removable | |
| Terminals for E.u.T.: | Wing terminals 12 mm, removable | |
| Length: | 520 mm | |
| Width: | 445 mm | |
| Height: | 385 mm | |
| Weight: | ~22 kg | |
| Standard: | CISPR 16-1-2 |
NNLK 8130
| Topology: | V-LISN | |
| Frequency Range: | (9 kHz) 150 kHz – 30 MHz | |
| Impedance simulation: | 50 µH || 50 Ω | |
| Max. Voltage: | 250 VAC 50/60 Hz 400 VDC |
|
| Max. Current: | 4 x 400 A (with fans ON) | |
| Mains terminals: | 4 wing terminals | |
| Terminals for E.u.T.: | 4 wing terminals | |
| Length: | 738 mm | |
| Width: | 448 mm | |
| Height: | 473 mm | |
| Weight: | ~55 kg | |
| Standard: | CISPR 16-1-2 |
NNLK 8140 – V-LISN
| Topology: | Single path V-LISN | |
| Frequency range: | (9 kHz) 150 kHz – 30 MHz | |
| Impedance: | 50 µH || 50 Ω (+/- 20 %) | |
| max. voltage (DC): | 1000 VDC | |
| max. voltage (50/60 Hz AC) : |
1000 VAC | |
| max. voltage (400 Hz AC): |
500 VAC | |
| max. const. current: | 800 A | |
| max. current (limited time): | 1000 A | |
| Mains connectiors: | 2 wing terminals M16x1.5 removable | |
| EuT connectors: | 2 wing terminals M16x1.5 removable | |
| Length: | 770 mm | |
| Width: | 445 mm | |
| Hight: | 505 mm | |
| Weight: | 46 kg | |
| Standard: | CISPR 16-1-2 |
