Full compliant with the latest standards ISO16750-2
●LCD display, Intelligent control, reliable performance
●Use the Programmable imported high-voltage power supply, Reliable performance
●Built-in international standards level parameters and user model parameters,
●Positive and negative polarity are automatically switched, easy to operate.
● Built –in the adjustable DC power in system

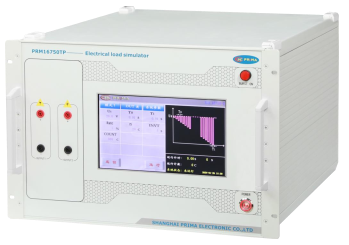

Bộ mô phỏng xung quá độ ô tô PRM16750TP theo tiêu chuẩn ISO 7637-2
Bộ mô phỏng xung quá độ oto PRM16750TP bao gồm xung 2b, P4
BÁO GIÁ SẢN PHẨM
Bộ mô phỏng xung quá độ ô tô PRM16750TP theo tiêu chuẩn ISO 7637-2
| P2b | 12V System | 24V System |
| Stable voltage UA | 13.5V±0.5V | 27V±1V |
| Pulse amplitude Us | 10V | 20V |
| Source resistance Ri | 0 Ω～0.05 Ω | |
| Voltage dips timeT1 | 1ms±0.5ms | |
| Voltage delay timeT2 | 1ms±0.5ms | |
| Pulse rise timeT3 | 1ms±0.5ms | |
| Pulse durationTd | 0.2s～ 2s | |
| Pulse interval timeT | 0.5s～5s | |
| Test times N | 1～99 | |
| Working power supply | AC220V ± 10% 50/60Hz |
| P4 | 12V System | 24V System |
| Stable voltage UB | 12V±0.2V | 24V±0.4V |
| First drop amplitude Us | -5V ～-8V | -10V～-20V |
| Second drop amplitude Ua | -2V ～ 66.3V ︱ Ua︱ ≤︱ Us︱ | -4V～-13V ︱ Ua︱ ≤︱ Us ︱ |
| Source resistance | 0 Ω～0.02 Ω | |
| First stable timeT7 | 10ms～ 45ms | 50ms～ 100ms |
