Trong thử nghiệm EMC/RF, do mỗi loại ăng-ten (như Biconical, Log-Periodic, Horn, Rod) có kích thước, trọng lượng và chuẩn chân cắm khác nhau, Mast Adapters đóng vai trò cầu nối giúp lắp đặt linh hoạt và an toàn.
Schwarzbeck Mast Adapters chất lượng Đức

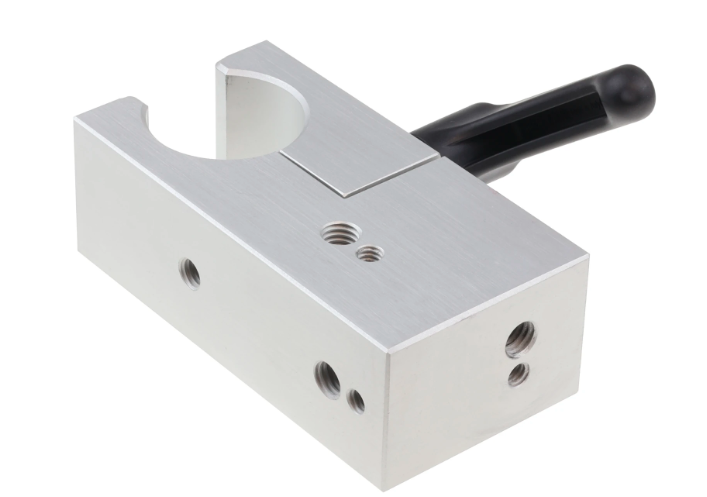

Mast Adapters (Bộ gá chuyển đổi cột ăng-ten) là các đầu nối cơ khí phụ trợ dùng để kết nối, định vị và cố định các loại ăng-ten đo kiểm khác nhau lên Antenna Mast (cột nâng) hoặc Antenna Tripod (chân ba chạc).
BÁO GIÁ SẢN PHẨM
Schwarzbeck Mast Adapters chất lượng Đức
- Model : AA 9202 , Clamping Diameter: 22 mm, used together with Antenna Mast AM 9144
- Model : AA 9202-38 , Clamping Diameter: 38 mm, used together with Antenna Mast AM 9144
- Model : AD 9712-22 , Clamping Diameter: 22 mm,for attaching dedicated preamplifiers to antenna tubes. Suitable e.g. for BBV 9722.
- Model : PDG 9211 , allows to change the polarisation of larger horn antennas by a single person easily
- Model : AA 9202 POM ,Clamping Diameter: 22 mm, used together with the Antenna Mast AM 9144
- Model : AA 9203 ,Clamping Diameter: 22 mm, used together with the Antenna Mast AM 9144
- Model : RA 9215 ,Clamping Diameter: 22 mm,Indexing ring diameter: 35 mm Designed for antennas with a 22 mm tube and indexing ring
- Model : AA 9205 ,designed for convenient positioning of lightweight antennas in three perpendicular directions
- Model : AA 9209 ,Clamping Diameter: 22 mm,used together with the tripod AM 9144 for mounting antennas with 22 mm tube
- Model : AA 9213 ,Adapter to convert a 3/8″ female thread to 22 mm tube with indexing ring
- Model : KG 9201 ,Mast Adapter (swivel, 90° vertical/horizontal polarisation for AM 9144), for VULP 9118 D,E,F,G and VUSLP 9111 E only
- Model : POL SWIVEL 9111 F ,for VUSLP 9111 F serves to mount the antenna to a vertical mast tube with 50 mm diameter
- Model : POSITIONER ,Positioner for light weight antennas like SBA 9113 with 420 NJ
- Model : CABLE GUIDE useful to guide the cable parallel to the POSITIONER
- Model : AA NMHA For Renault or Nissan with 22mm tube
- Model : R&S Flange for Schwarzbeck antenna with 22 mm tube.
- Model : TWAD 9220 to mount two antennas equipped with 22 mm diameter tube.
- Model : RRAH 9286 an antenna holder for antennas with 22 mm
- Model : RS 9214 Adapter to convert the R&S Aluminium Flange into 22 mm tube with indexing ring
- Model : ETSA 9227 Adapter for light horn antennas of various manufacturers with 50 mm bolt circle to 22 mm tube with indexing ring
- Model : PPS 9208 used to change the polarisation of Antennas with 22 mm tube remote controlled
- Model : AD ATH4G8 Adapter for mounting an AR ATH4G8 antenna to a Schwarzbeck mast adapter with 22 mm tube mounting.
- Model : SWHA 9204 antenna handle was designed to perform the so called swivel method
- Model : EA 9207 Adapter for Schwarzbeck antennas with 22 mm tube on EMCO mast
