Khác với các LISN cho ô tô (CISPR 25) hay quân sự (MIL-STD-461), V-LISN CISPR 16-1-2 được quy định cụ thể trong tiêu chuẩn cơ bản quốc tế CISPR 16-1-2 nhằm đo nhiễu dẫn (Conducted Emission) từ dải tần kHz đến 30MHz trên các dây nguồn AC/DC

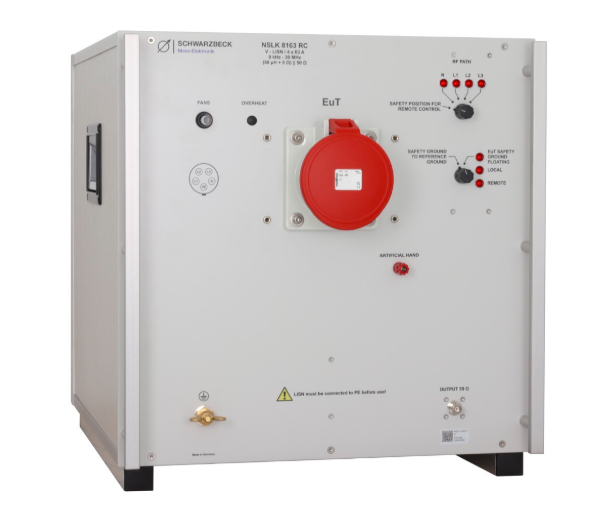

Schwarzbeck V-LISN theo tiêu chuẩn CISPR 16-1-2
V-LISN theo tiêu chuẩn CISPR 16-1-2 (hay còn gọi là V-AMN – V-Type Artificial Mains Network) là thiết bị mạng ổn định trở kháng chuẩn mực nhất trong đo lường Tương thích Điện từ (EMC) cho các thiết bị dân dụng, công nghiệp, y tế và gia dụng kết nối với lưới điện.
BÁO GIÁ SẢN PHẨM
Schwarzbeck V-LISN theo tiêu chuẩn CISPR 16-1-2
- Model : LISN NNLK 8121 ,Frequency Range: 9kHz – 30 MHz, Max. Continuous Current: 4x 100 A,,Max. Voltage DC: 630 V,Max. Voltage (AC 50/60 Hz): 400 V,Pre-Filter Choke : 250 µH,Impedance: (5 µH + 1 Ω) || 50 Ω,Standard:CISPR 16-1-2
- Model : LISN NNLK 8121 PLC,Frequency Range: 2 kHz – 30 MHz, Max. Continuous Current: 4x 100 A,,Max. Voltage DC: 630 V,Max. Voltage (AC 50/60 Hz): 250 V,Pre-Filter Choke : 250 µH,Impedance: (5 µH + 1 Ω) || 50 Ω,Standard:CISPR 16-1-2,EN 50065-1
- Model : LISN NNLK 8122 ,Frequency Range: 9kHz – 30 MHz, Max. Continuous Current: 2x 50 A,,Max. Voltage DC: 1000 V,Max. Voltage (AC 50/60 Hz): 750 V,Pre-Filter Choke : 250 µH,Impedance: (5 µH + 1 Ω) || 50 Ω,Standard:CISPR 16-1-2
- Model : LISN NNLK 8129 ,Frequency Range: 9kHz – 30 MHz, Max. Continuous Current: 4x 200 A,,Max. Voltage DC: 800 V,Max. Voltage (AC 50/60 Hz): 400 V,Pre-Filter Choke : 250 µH,Impedance: 50 µH || 50 ΩStandard:CISPR 16-1-2
- Model : LISN NNLK 8129-2 HV ,Frequency Range: 150 kHz – 30 MHz, Max. Continuous Current: 2x 200 A,,Max. Voltage DC: 1000 V,Max. Voltage (AC 50/60 Hz): 1000 V,Pre-Filter Choke : 250 µH,Impedance: 50 µH || 50 ΩStandard:CISPR 16-1-2
- Model : LISN NNLK 8130 ,Frequency Range: 150 kHz – 30 MHz, Max. Continuous Current: 4x 400 A,,Max. Voltage DC: 800 V,Max. Voltage (AC 50/60 Hz): 400 V,Pre-Filter Choke : 250 µH,Impedance: 50 µH || 50 ΩStandard:CISPR 16-1-2
- Model : LISN NNLK 8140 ,Frequency Range: 150 kHz – 30 MHz, Max. Continuous Current: 1x 800 A,,Max. Voltage DC: 1000 V,Max. Voltage (AC 50/60 Hz): 1000 V,Max. Voltage (AC 400 Hz): 500V ,Impedance: 50 µH || 50 Ω ,Standard:CISPR 16-1-2
- Model : LISN NSLK 8117 ,Frequency Range: 9 kHz – 30 MHz, Max. Continuous Current: 2x 10 A,,Max. Voltage DC: 350 V,Max. Voltage (AC 50/60 Hz): 250 V,Max. ,Impedance:(50 µH + 5 Ω) || 50 Ω,Standard:CISPR 16-1-2
- Model : LISN NSLK 8127 ,Frequency Range: 9 kHz – 30 MHz, Max. Continuous Current: 2x 16 A,,Max. Voltage DC: 400 V,Max. Voltage (AC 50/60 Hz): 250 V,Max. Pre-Filter Choke: 250 µH ,Impedance:(50 µH + 5 Ω) || 50 Ω,Standard:CISPR 16-1-2
- Model : LISN NSLK 8126 ,Frequency Range: 9 kHz – 30 MHz, Max. Continuous Current: 4x 16 A,,Max. Voltage DC: 400 V,Max. Voltage (AC 50/60 Hz): 250 V,Max. Pre-Filter Choke: 250 µH ,Impedance:(50 µH + 5 Ω) || 50 Ω,Standard:CISPR 16-1-2
- Model : LISN NSLK 8128 ,Frequency Range: 9 kHz – 30 MHz, Max. Continuous Current: 4x 32 A,,Max. Voltage DC: 400 V,Max. Voltage (AC 50/60 Hz): 250 V,Max. Pre-Filter Choke: 250 µH ,Impedance:(50 µH + 5 Ω) || 50 Ω,Standard:CISPR 16-1-2
- Model : LISN NSLK 8163 ,Frequency Range: 9 kHz – 30 MHz, Max. Continuous Current: 4x 63 A,,Max. Voltage DC: 630 V,Max. Voltage (AC 50/60 Hz): 250 V,Max. Pre-Filter Choke: 250 µH ,Impedance:(50 µH + 5 Ω) || 50 Ω,Standard:CISPR 16-1-2
