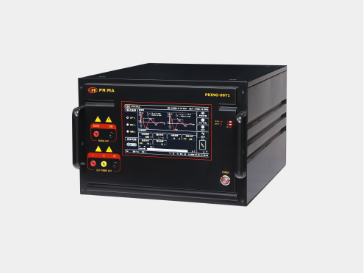

Shanghai Prima Ringwave Simulator ZLB61012TA là một thiết bị thử nghiệm sóng vòng / xung sóng hình chuông (Ringwave Simulator) chuyên dụng do Shanghai Prima Electronic Co., Ltd. chế tạo.
>Support multi-channel testing
>Positive and negative polarity can be switched freely
>One-button switch between Chinese and English modes
>Built-in international standard grade parameters
>The highest test voltage can reach 6.6kV
>10.1-inch color touch screen operation
>Phase angle superposition of any line
>Test mode full-gear automatic switching
>Built-in RJ45, RS232 interface, remote control (optional)
>EC61000-4-12/GB/T17626.12
>IEC255-22-1
>GB16917.1
|
ZLB61011TA |
|
||
|
Open circuit voltage wave |
0.20～±6.60kV（±10%） |
|
|
|
Open circuit voltage attenuation ratio |
40%<PK2/PK1<110% |
|
|
|
40%<PK3/PK2<80% |
|
||
|
40%<PK4/PK3<80% |
|
||
|
Oscillation frequency |
100KHz ±10% |
|
|
|
Output impedance |
12Ω、30Ω ±10% |
|
|
|
Short circuit current attenuation ratio |
40%<PK2/PK1<110% |
|
|
|
Output polarity |
+ , -, +/-, -/+ |
|
|
|
Step voltage |
0～2.5kV |
|
|
|
Step current |
0～220A |
|
|
|
Trigger mode |
Interval |
|
|
|
Number of test |
1～9999 |
|
|
|
Interval time |
10s～9999s the shortest time depends on the test voltage |
|
|
|
Phase synchronization |
0°～359°（45 Hz～ 65 Hz）(synchronous, asynchronous) |
|
|
|
Short circuit current waveform |
The short-circuit current is determined by the selected high voltage and internal resistance (12Ω, 30Ω) |
|
|
|
CDN |
|
||
|
EUT power |
Automatically judge AC and DC display |
|
|
|
Decoupling load capacity |
AC 260V, 20A; DC 220V, 12A/20A/16A |
|
|
|
Coupling/decoupling network |
Built-in single-phase three-wire coupling and decoupling network |
|
|
|
Coupling switching mode |
Automatically |
||
