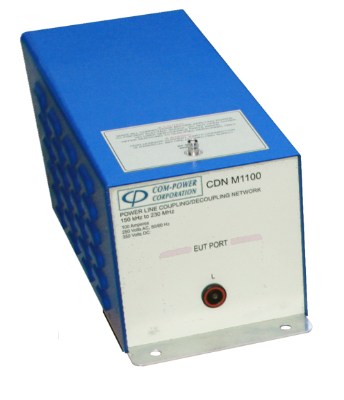

Mạng ghép – tách tín hiệu (CDN) theo tiêu chuẩn IEC / EN 61000-4-6

Technical data

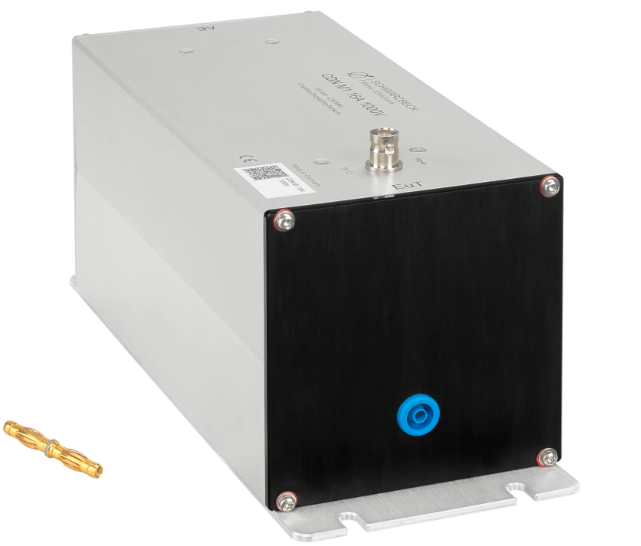

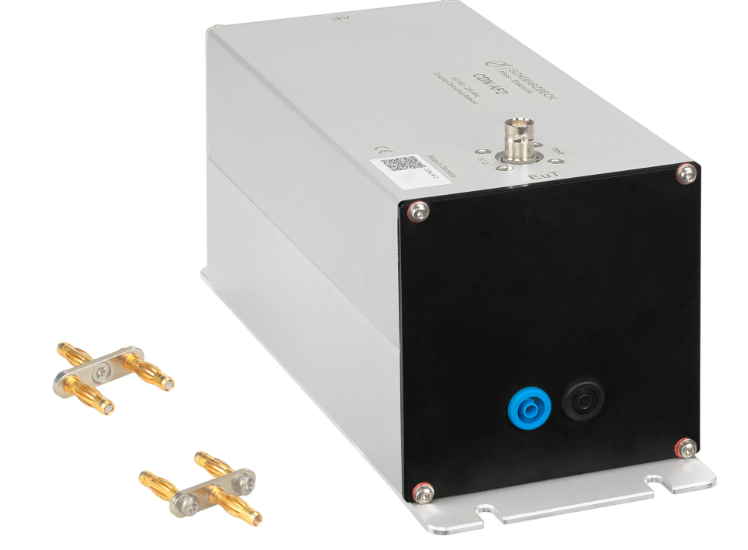

Article CDN-M1*/-M2/-M3/ -M4/-M5/-M2+3 32A
CDN-M1/-M2/-M3/-M4/ -M5/-M2+3-10k 32A
CDN-M2 /-M3-/ -M4-/-M5 125A
RF In
Frequency range (RF In) 150 kHz – 230 MHz 10 kHz – 230 MHz 150 kHz – 80 MHz
Power rating (RF In) 6 W (100 % ED) 6 W (100 % ED) 6 W (100 % ED)
Decoupling attenuation
(RF In – AE)

> 30 dB
(150 kHz – 80 MHz)
> 20 dB
(80 MHz – 230 MHz)
> 30 dB
(150 kHz – 80 MHz)
> 15 dB
(80 MHz – 230 MHz)
> 30 dB
(150 kHz – 80 MHz)

Insertion loss
(RF In – EUT)

10 dB +2/-1 dB
(150 kHz – 80 MHz)
10 dB + 5 dB
(80 MHz – 230 MHz)
10 dB +2/-1 dB
(150 kHz – 80 MHz)
10 dB + 5 dB
(80 MHz – 230 MHz)
10 dB +2/-1 dB
(150 kHz – 80 MHz)

Connector N N N
EUT / AE
Max input range AC
(L-PE) 500 V 500 V 1000 V
Max. input voltage DC 1000 V 1000 V 1000 V
Max. input voltage 500 V 500 V 1000 V
Current rating (AE – EUT) 32 A / 125 A; (M1 / M2+3 IPE <0.5 A)
Insertion loss
(AE – EUT) < 1 dB (DC – 100 kHz) < 1 dB (DC – 100 kHz) < 1 dB (DC – 100 kHz)
Connector 4 mm MC
safety sockets
4 mm MC
safety sockets
Push-in connection
up to 35 mm
Mechanical data
Dimensions (W x H x D) 160 x 102 x 240 mm 160 x 102 x 240 mm 200 x 122 x 400 mm
